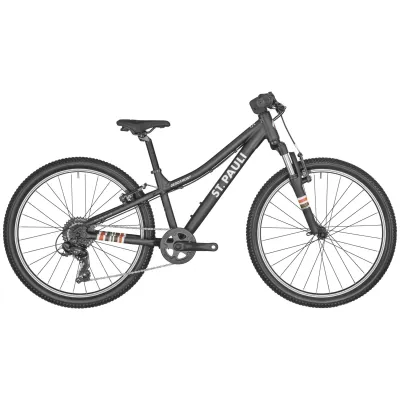

Bergamont Revox Junior St.Pauli 24ins

A solid all-terrain kids' bike with a lightweight aluminum frame and kids' geometry for ambitious youngsters. The Revox Junior sports an exclusive design in the FC St. Pauli colors featuring the club's signature skull emblem. Officially licensed product of the FC St. Pauli®

KEY FEATURES

• 24", lite AL-6061 tubing
• Suntour XCT JR DS, 50 mm
• Shimano, 1x7
• Alloy V-Brake
• Shining rims, Formula hubs
• Kenda K1166, 24x1,95"
• Officially licensed product of the FC St. Pauli®

• FRAME

  24", lite AL-6061 tubing

• FORK

  Suntour XCT JR DS, 50 mm, softer spring setup

• REAR DERAILLEUR

  Shimano RD-TY300

• SHIFTERS

  Shimano SL-RV200, 1x7-speed, revo-shifter

• CRANKSET

  Prowheel, 32t, length: 140 mm

• BB-SET

  Sealed cartridge, BSA

• CHAIN

  KMC Z7

• CASSETTE

  Sunrace MF-M300, 13-34t

• BRAKE LEVERS

  V-Brake lever, alloy, adjustable reach

• BRAKES

  Alloy V-brake

• HANDLEBAR

  BGM Comp, riserbar, width: 560 mm

• H'STEM

  BGM Comp, with Syncros Stem Protector

• SEATPOST

  BGM Comp

• SEAT

  Bergamont "FCSP"

• HEADSET

  BGM FP-H807, A-Headset, semi-integrated, 1 1/8"

• HUB (FRONT)

  BGM Comp, quick release

• HUB (REAR)

  BGM Comp, quick release

• SPOKES

  steel, black

• RIMS

  Shining A-5N, width: 19 mm

• FRONT TIRE

  Kenda K1166, 24x1,95"
  Tube: Kenda AV24

• REAR TIRE

  Kenda K1166, 24x1,95"
  Tube: Kenda AV24

• PEDALS

  Marwi SP-700

• APPROX WEIGHT IN KG

  11,6

• COLOR

  matt black

• FRAME SIZE

  one size

• GRIPS

  BGM Kids

• MAX. SYSTEM WEIGHT

  65,0 kg
  The overall weight includes the bike, the rider, the equipment and possible additional luggage.
