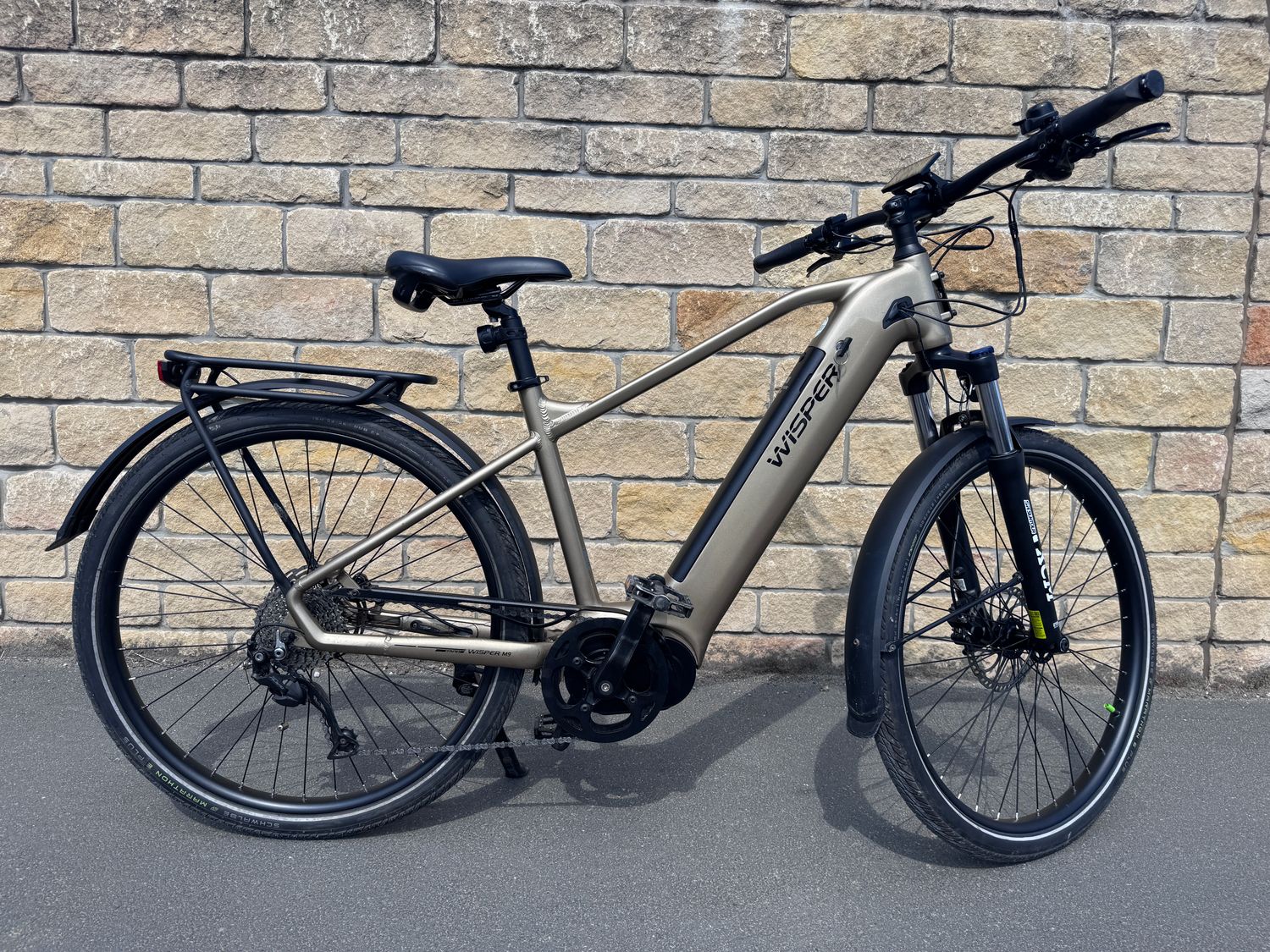

Wisper Wayfarer M9 Ebike - Used

Supplied and serviced by us from new

Mileage 1636

The Wayfarer M9 mid drive, crossbar is the perfect all-rounder. In City spec it is a comfortable commuter or day to day workhorse but underneath the city exterior beats the heart of a true thoroughbred, the Wayfarer super hi torque motor developing 100Nm. Strip off the comfort products and change the tyres and you have the perfect off-roader for a day in the hills and forests.

TECHNICAL SPECIFICATION

Motor
Wisper Super Hi Torque (100Nm) Mid Drive 43.2V 250W Nominal

Lithium Battery
In frame, secure removable. Chargeable in or out of frame
On/off button with LED charge status light.
Standard 450Wh
Long range 700Wh

Assisted range
Total load, terrain, road surface, tyre pressures, speed, power setting, wind conditions, and motor power all have a huge bearing on an eBike’s bikes range. With this in mind, you may expect to achieve the following AVERAGE ranges. Due to the number of outside factors affecting all electric bikes, our published ranges are estimates only, based on our experience and are not guaranteed. Due to the very high torque available from the Wayfarer Mid Drive if the bike is continuously used in “Turbo Mode” ranges will reduce considerably.
450Wh battery 20 – 40 miles (30 – 60km)
700Wh battery 30 – 60 miles (50 – 100km)

Controls
Wisper Back lit LCD display with remote controls
Thumb throttle to 4mph (6km/h) walk along
Thumb throttle to 15.5mph (25km/h) assist booster

Bicycle weight
450Wh: 27kg
700Wh: 29kg

Frame
Hand welded, 6061 Alloy T4 and T6 tempered

Frame size
18” 48cm

Frame Colour
Iridium Silver 6 coats

Forks
Suntour XCM 32 100mm travel, through axle

Bars
eMTB 760mm anodised black

Stem
Magix black anodised 70mm

Sizing and Dimensions

Throttle only range
Using your Wisper bike on throttle only will reduce your range by up to 65% and the TTP will not help increase range whilst you are using the throttle only. If your bike has been upgraded so it works on the throttle only, we still suggest pedalling when you are able to do so. Use the throttle only function when you need to rest or to help you pull away when setting off.

Seat post
31.6mm 350mm with 100mm safety line

Saddle
Wisper Comfort, eBike with seat handle

Kick stand
Black anodised alloy

Gears
Shimano Alivio 9 speed with Rapid Fire shifter

Chain
KMC X9 rust resist 9 speed

Chain drive
44t Rear

Freewheel
11 to 36

Pedals
Alloy

Brakes
Wisper Apex Hydraulic disc brakes, 2.5 finger F180mm R160mm

Wheels
Alloy black anodised double wall 27.5” x 1.24″ (31.4mm)

Tyres
Kenda 27.5” 2.2 high puncture resistance with reflector

Adventure/MTB Bike Tyre Upgrade (optional extra)
Schwalbe Smart Sam Perf, DD, RaceGuard, Folding 27.5” x 2.25” First class all-rounder with extra safe Double Defence puncture protection 3mm GreenGuard layer, SnakeSkin sidewall. ECE-R75 approved for great riding fun on your eMTB or E-Adventure Bike. Wayfarer rims can take tyres of up to 2.25″ wide without fouling forks or frame. Tyres of more than 2.25″ can only be used without mudguards.

Mudguards
Black Anodised Aluminium 2.6″

Lighting
Front: Spaningo XE 6V powered from bike battery
Rear: Spaningo XE 6V powered from bike battery

Rear Rack
Wisper integrated custom, 17kg limit

Front Rack (optional extra)
Wisper integrated custom, 10kg limit

Max Weight Load Inc. Luggage
21st 135kg
