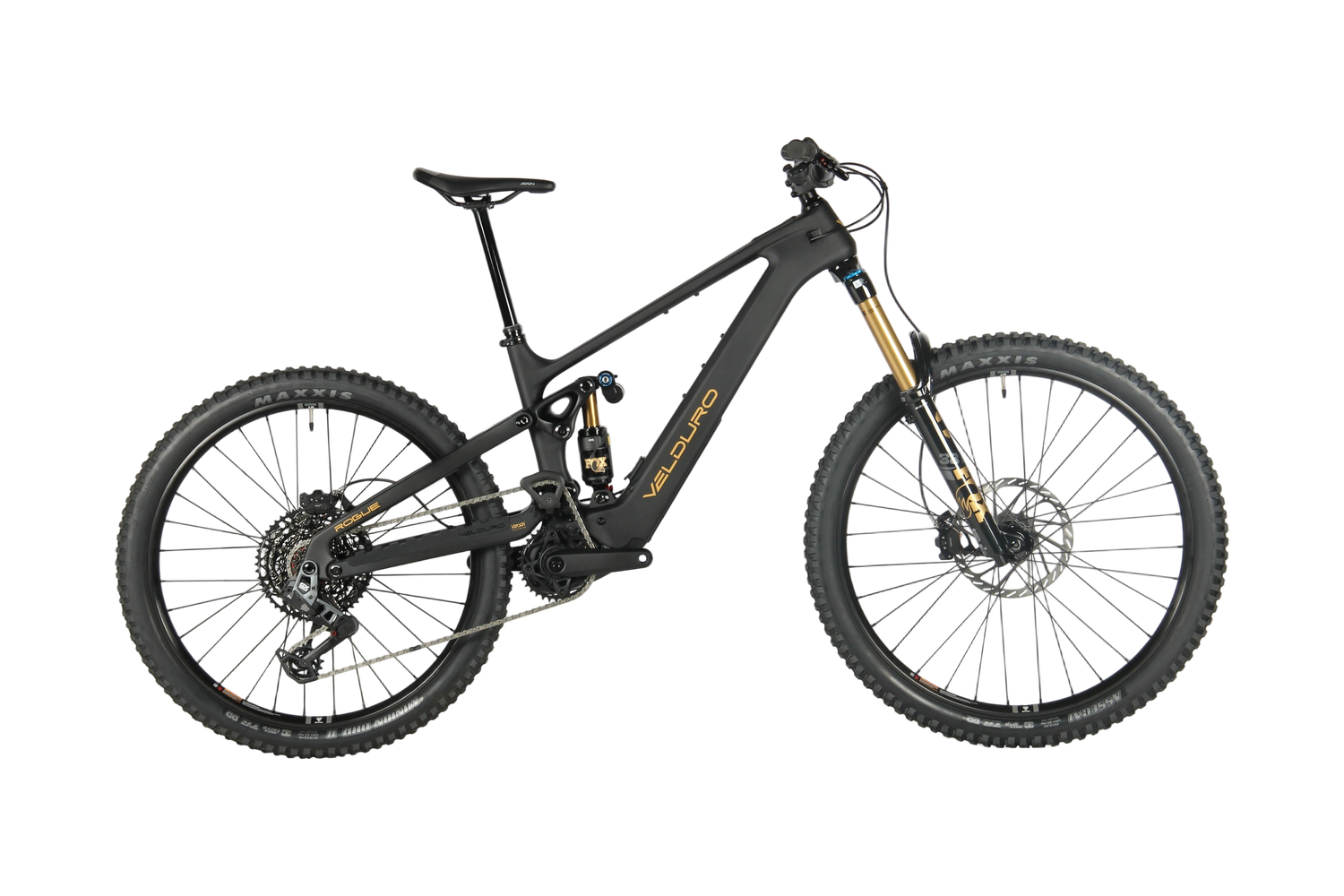

Velduro Rogue R

Meet the Rogue R. Engineered for the ultimate MX enduro experience. Featuring custom-tuned FOX suspension, SRAM AXS GX Eagle 10-52T drivetrain, and powerful Maven Silver four-piston brakes, this bike is built to perform. Weighing just 23 kg and powered by an 800 Wh battery, the Rogue R delivers all-day capability with i-track enhanced suspension for unmatched control and responsiveness on any terrain. This is the ultimate DJI-powered enduro EMTB!

Frame

Carbon fibre enduro frame:

• 165mm rear travel, up to 172mm,
• mid-pivot
• battery integrated
• rear wheel flip chip
• shock position flip chip
• inner cable routing
• Boost 12x148mm
• 16T idler, with oversize bearings.

Saddle, Dropper & Cockpit

• Headset: Internal alignment
• Saddle: Fizik Terra Aidon X5
• Seat post lever: ONEUP Dropper lever V3.1
• Seat Post Clamp:ONEUP KIT 22.2
• Dropper:ONEUP V3 mechanical Dia.31.6
  S: 180mm travel, M/L: 210mm travel,
  XL: 240mm travel
• Handlebar: OneUp, alloy, 800L, 35R.
• Stem: ONEUP Stem 42mm forged
• Grips: Velduro: thick grips - Black.

Drive Train, Brakes & Crank

• Brakes:Sram Mavan Silver 4- Pistion hydraulic brake
• Disc: Sram HS2 disc front 220 , rear 203mm
• Pedal: Riders Choice
• SHIFT LEVER:Sram AXS pod controller
• REAR DERAILLEUR: Sram AXS GX eagle transmission derailleur w/ power cable
• CRANKSET: Avinox SL crank 155mm
• CASSETTE: Sram XS-1275 10-52T
• CHAIN :Sram GX Flat top Chain
• CHAINWHEEL Sram EMTB Eagle 34T.

Wheels & Tyres

• Wheel set: Velduro e-Enduro carbon, EC-30
• Front Hub: Alloy, 2 sealed cartridge bearings, 15x110 thru-axle, 28h,
  straight-pull, 6-bolt
• Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12 thru-axle, 28h,
  straight-pull, 6-bolt, 78T
• Spokes: Sapim e-light straight pull
• Rim: Carbon,F 29’/R 27.5’, 30mm internal width
• Front tire: Maxxis Assegai M356Ru 29*2.5 3C Grip/DD/TR BK
• Rear tire: Maxxis Minion DHR2 M327 Ru27.5*2.4 3C Terra/DD/TR BK
• Your Rogue is tubeless ready, but comes with tube.

Avinox Drive System

• Motor:M2S 1300W, 130Nm, 150Nm boost
• Battery: 800 WH
• Charger: 36V 4A
• Display: DP100

Suspension Forks

• Fox 38 F-S 2026, 29 inch, 170mm,
  Grip X2, 15X110mm
• Fox float X2 F-S 2026, 205X65mm (custom factory tuned for the Rogue)
