BH iLYNX Trail 7.9
£3,079.17
Arriving Soon
Size
Please choose
Colour
Please choose
Lightness, control and power. The purest essence of a Lynx, now boosted by the Bosch Performance Line CX motor.
Out of stock, available for pre-order
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

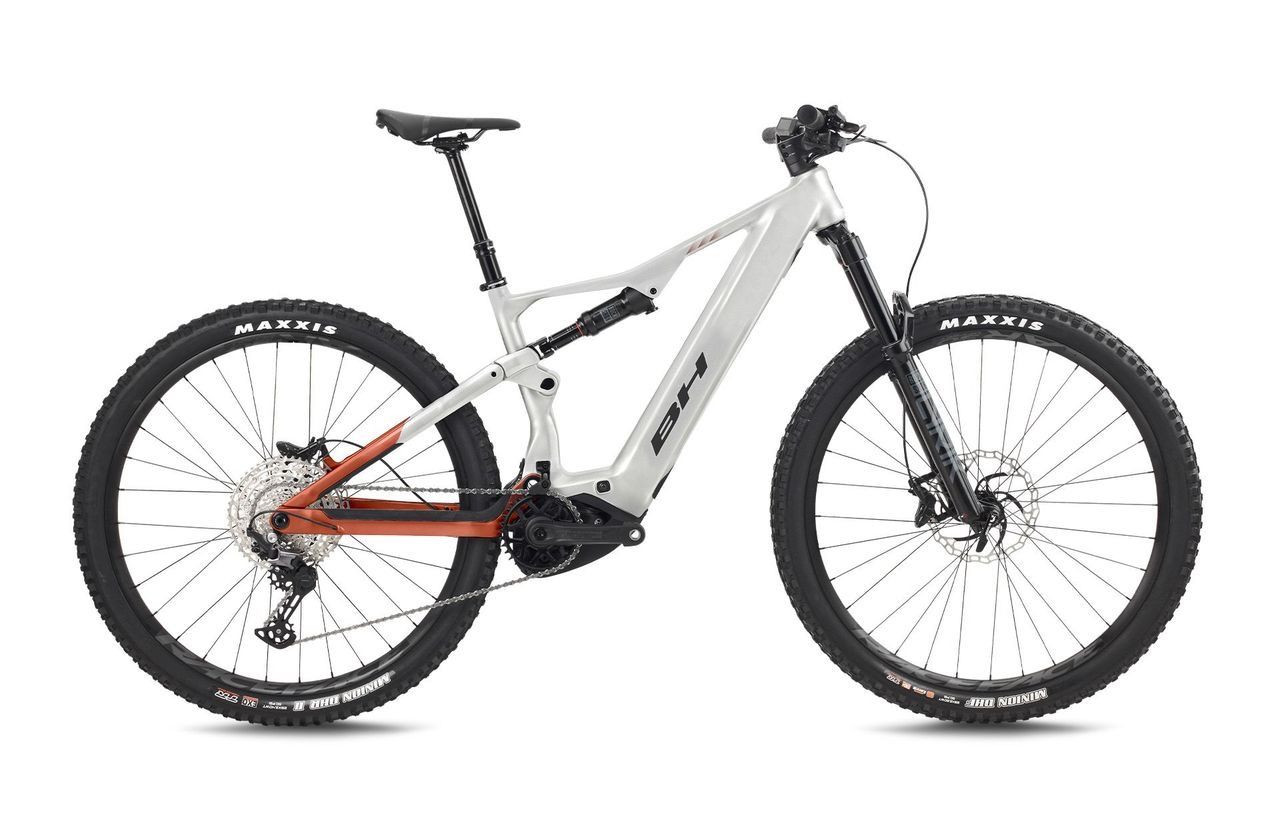

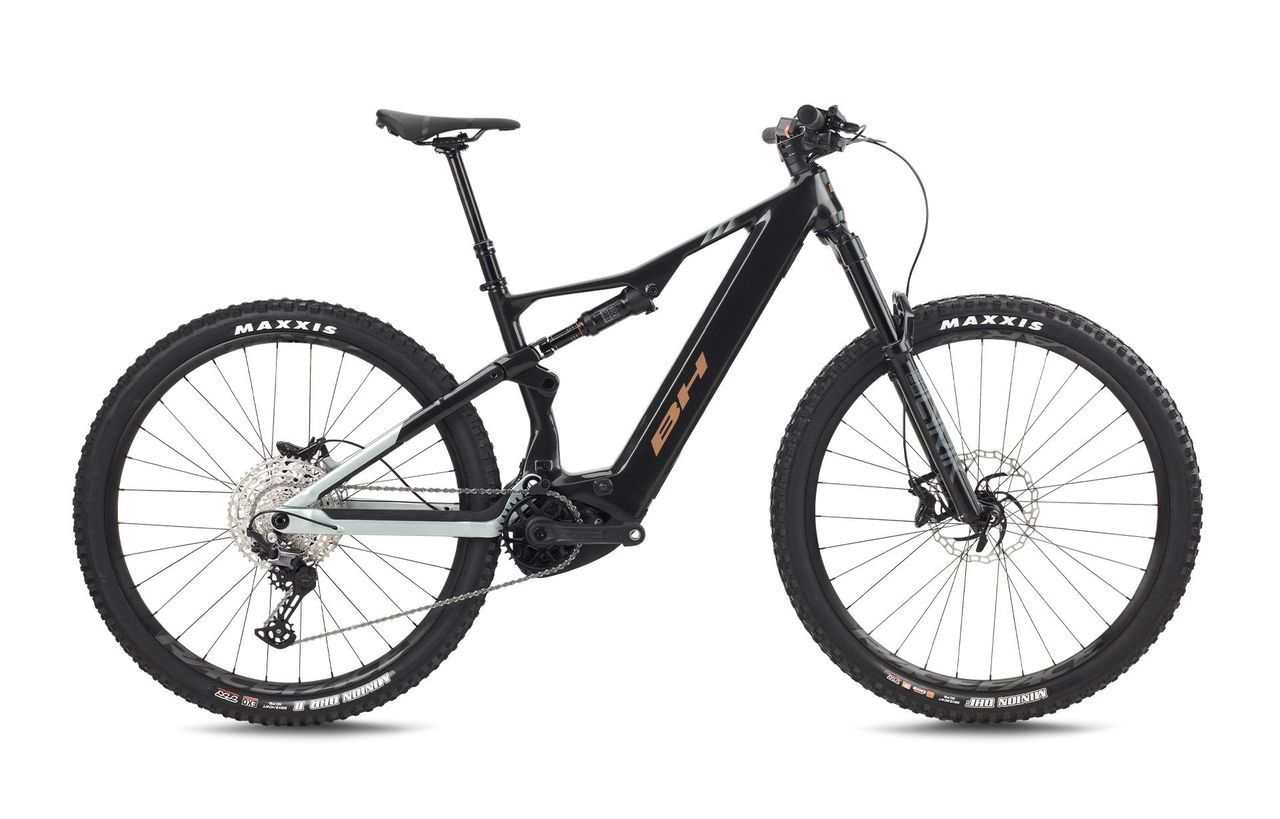

BH iLYNX Trail 7.9
Product Details
Brand: BH Bikes
Lightness, control and power. The purest essence of the Lynx, now enhanced with the latest Bosch Performance Line CX motor. Designed to deliver confidence and control on demanding trails, the Lynx is available in two travel configurations: Trail with 140 mm travel and Enduro with 160 mm travel.
Frame & Suspension
The bike features a 140 mm full-suspension alloy 29" frame with internal cable routing, paired with a RockShox Deluxe DebonAir rear shock and SR Suntour XCR34 Air 140 mm fork with 15QR.
Drivetrain
The drivetrain combines reliable Shimano Deore components with a 10-speed setup:
- Shift levers: Shimano Deore
- Rear derailleur: Shimano Deore 10-speed
- Crankset: E-Thirteen Helix Core 34T, 160 mm
- Cassette: Shimano CS-M4100 10-speed, 11–46T
- Chain: Shimano HG54
Brakes
Powerful and dependable Shimano MT201 hydraulic disc brakes provide controlled stopping performance, with 180 mm rotors front and rear.
Wheels & Tyres
The bike is equipped with a BH Lite Mach1 Trucky 30 wheelset, using BH hubs and stainless-steel spokes. Grip and stability come from Maxxis Forekaster TPI60 29 × 2.35 tyres, making the bike well suited to varied trail conditions.
Seat & Dropper Post
The bike features a Prologo Proxim W350 Stn saddle, an alloy seat clamp and a Kind Shock Kagei dropper seatpost, giving the rider greater freedom of movement and control on technical terrain.
Cockpit
The trail-focused cockpit includes:
- Handlebar: Race Face Aeffect Riser 35, 780 mm
- Stem: BH Evo 35 Fit
- Headset: Acros AZX-581 BL
- Grips: BH Ergonomic
Accessories
A double integrated chainstay protector helps protect the frame from chain slap and trail debris.
Bosch Electric System
The bike is powered by the NR System, featuring a substantial 800 Wh battery and Bosch CX Gen 5 motor. The system is designed to provide strong, responsive assistance for longer rides and challenging climbs.
A Bosch Purion 200 display provides a clean and intuitive way to monitor and control the bike's assistance settings.
Key Highlights
140 mm full suspension • 29" wheels • Bosch CX Gen 5 • 800 Wh battery • Shimano Deore 10-speed • Maxxis Forekaster tyres • Dropper seatpost • Internal cable routing
