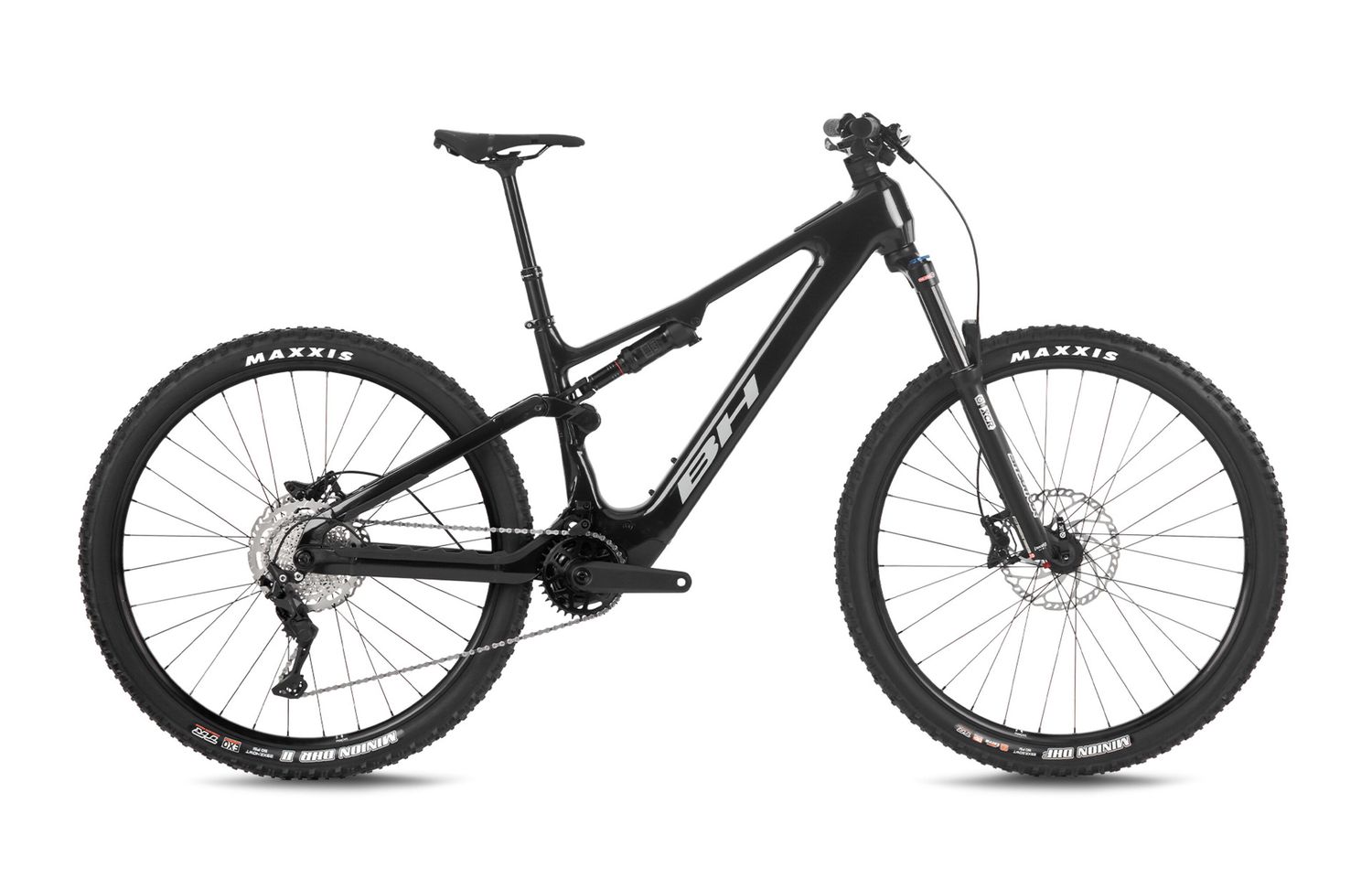

Master every trail with the new iLYNX+ DL Trail featuring the Avinox M2 motor with 125 Nm of torque and 1100 W. 140 mm of travel and a geometry designed to tackle any trail with total confidenc

Electric Mountain Bike – Technical Specifications

Frame & Suspension

Frame: iLynx+DL, 150mm full suspension, 29", alloy, ICR
Rear Shock: RockShox Deluxe Debonair
Fork: SR Suntour XCR34 Air, 140mm, 15QR

Drivetrain

Shift Levers: Shimano Deore
Rear Derailleur: Shimano Deore 10-speed
Crankset: EThirteen 34T, 160mm
Cassette: Shimano CSM4100 10-speed (11–46T)
Chain: Shimano HG54

Brakes

Front Brake: Shimano MT420, 4-piston, 203mm
Rear Brake: Shimano MT420, 4-piston, 203mm

Wheels & Tyres

Wheelset: BH Lite Mach1 Trucky 30
Tyres: Maxxis Minion TPI120 Terra EXO TR, 29" x 2.5 / 2.4
Hubs: BH
Spokes: Stainless Steel

Seat & Seatpost

Saddle: Prologo Proxim W350 STN
Seat Clamp: Alloy
Seatpost: X-Fusion Manic TA, 31.6mm

Cockpit

Handlebar: BH MTB SLite Alloy Riser, 780mm
Stem: Satori URSA 35
Headset: Acros AIX287 ICR BL
Grips: BH Ergonomic

Accessories

Chainstay Protector: Double Integrated

Electrical System & Technology

System: Non-removable
Battery: 800Wh
Motor: Avinox M2
Display: Avinox DCP100 + Wireless Remote
