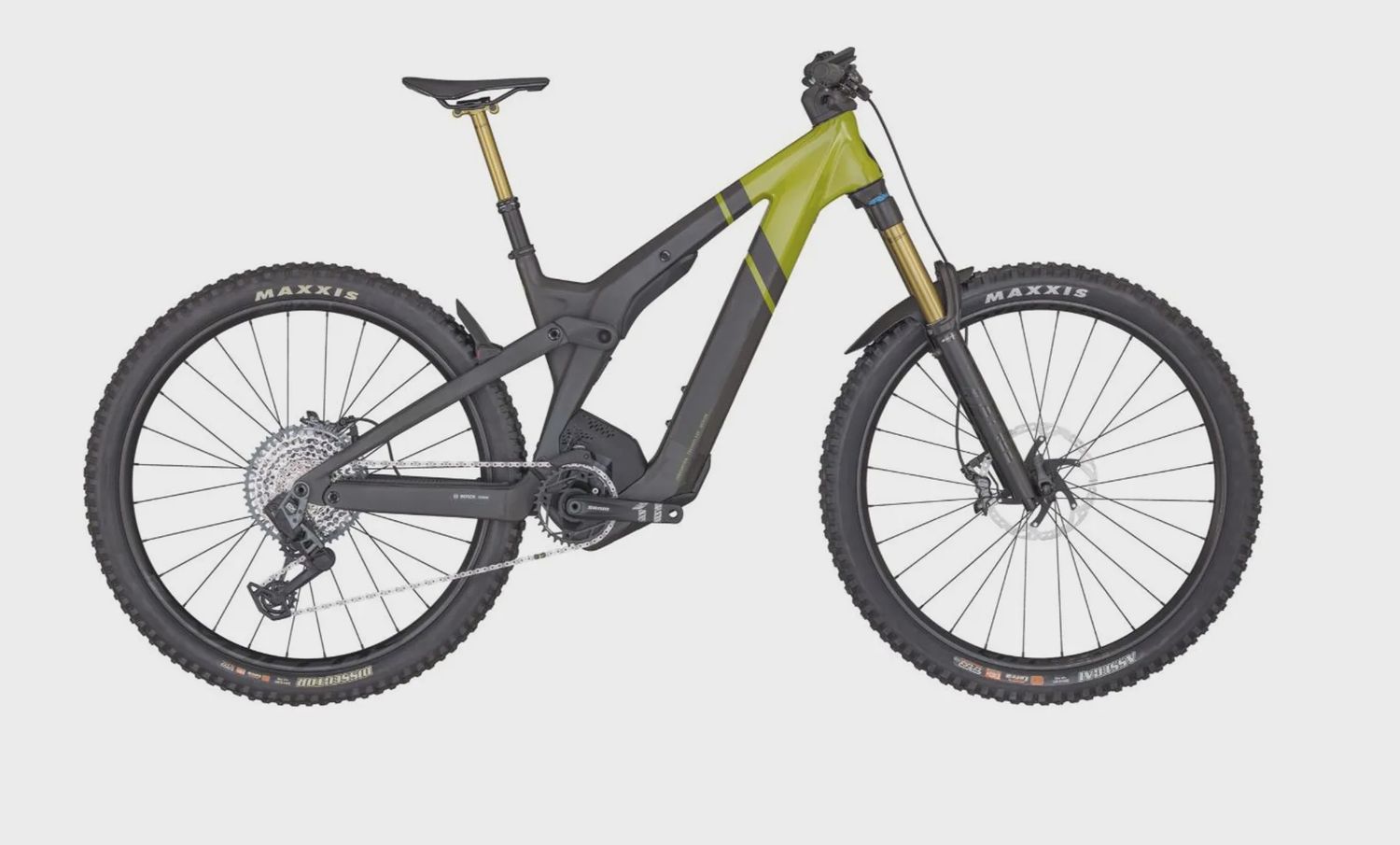

Scott Patron ST eRide 900 Tuned MTB
£5,399.00
Pre-order
was £10,499.00 Save 49%
Price incl. VAT (20%) £899.83
More travel with 170mm front and beefier tires. Master the trails!
Size
Please choose
Out of stock, available for pre-order
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Scott Patron ST eRide 900 Tuned MTB
Product Details
Brand: Scott
ST for Super Trail, the Patron ST eRIDE 900 Tuned is based on the classic Patron platform but optimized for the ones who like spending more time in the air and in steeper terrain. No Twinloc on the fork, more travel with 170 front and beefier tires. Master the trails!
Frame: Carbon Main Frame & SST / Alloy CST-LinkVirtual 4 link kinematic VLK29x2.6 / Boost 148x12mm UDH160mm travel / Bosch Gen4 / Integr. removable Battery1.8" Headtube, Central Kickstand MountIntegr. Cable
Travel: Front: 170mm / Rear: 160mm
Fork: FOX 38 FIT Factory Grip 2 Air / KashimaHSC - LSC - HSR- LSR adjustable / QR Axle 15x110mm44mm offset / tapered steerer170mm travel
Rear Shock: FOX NUDE T eRIDE EVOL Kashima / TrunnionSCOTT custom w. travel / geo adj.3 modes: Lockout-Traction Control-Descendcustom large air volume / DPS / Reb. Adj.Travel 160-115-Lockout / 205X60mm
Remote System: TracLoc TechnologyRear Suspension & Dropper Remote3 Rear Suspension modes
Drive Unit: Bosch Performance CX-REU: 25kmh / INT: 20mph
Battery: PowerTube 750Wh
Display: Bosch LED Remote & Kiox 300
Charger: 4A Charger
Rear Derailleur: SRAM X01 Eagle AXS / 12 SpeedWireless Electronic Shift System
Shifters: SRAM GX Eagle AXS Rocker Controller
Crankset: SRAM X1 1000 / 165mm
Chainguide: e*thirteen / e*spec Slider
Chainring: SRAM Eagle 34T DM / Steel
Chain: SRAM CN NX Eagle
Cassette: SRAM XG1275 / 10-52 T
Brakes: Shimano XT / BR-M8120 4 Piston
Rotor: Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm
Handlebar: Syncros Hixon iC SL / 15mm Rise / integrated cockpitS&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension7° backsweep / 6° upsweep / Syncros Endurance lock-on grips
Seatpost: FOX Transfer Factory Dropper Post Kashima31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm
Seat: Syncros Tofino 1.5 RegularTitanium rails
Headset: Acros / 1.8"ZS66 OD74 / integr. Cable
Wheelset: Syncros Revelstoke-E 1.5 CLF: 15x110mm, R: 12x148mm Boost30mm Tubeless ready rim 28HSyncros Axle w/Removable Lever with Tool
Front Tire: Maxxis Assegai 29x2.6"120TPI Foldable BeadEXO+ / TR Tubeless ready3C Maxx Terra
Rear Tire: Maxxis Dissector 29x2.6"120TPI Foldable BeadEXO+ / TR Tubeless ready3C Maxx Terra
Lights: Syncros integrated rear fender lightFront Light Cable pre-installed
Extras: Syncros Fork Fender
Approx weight in KG: 23.6 (with tubes)
Approx weight in LBS: 52.03 (with tubes)
Max. System Weight: 128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
